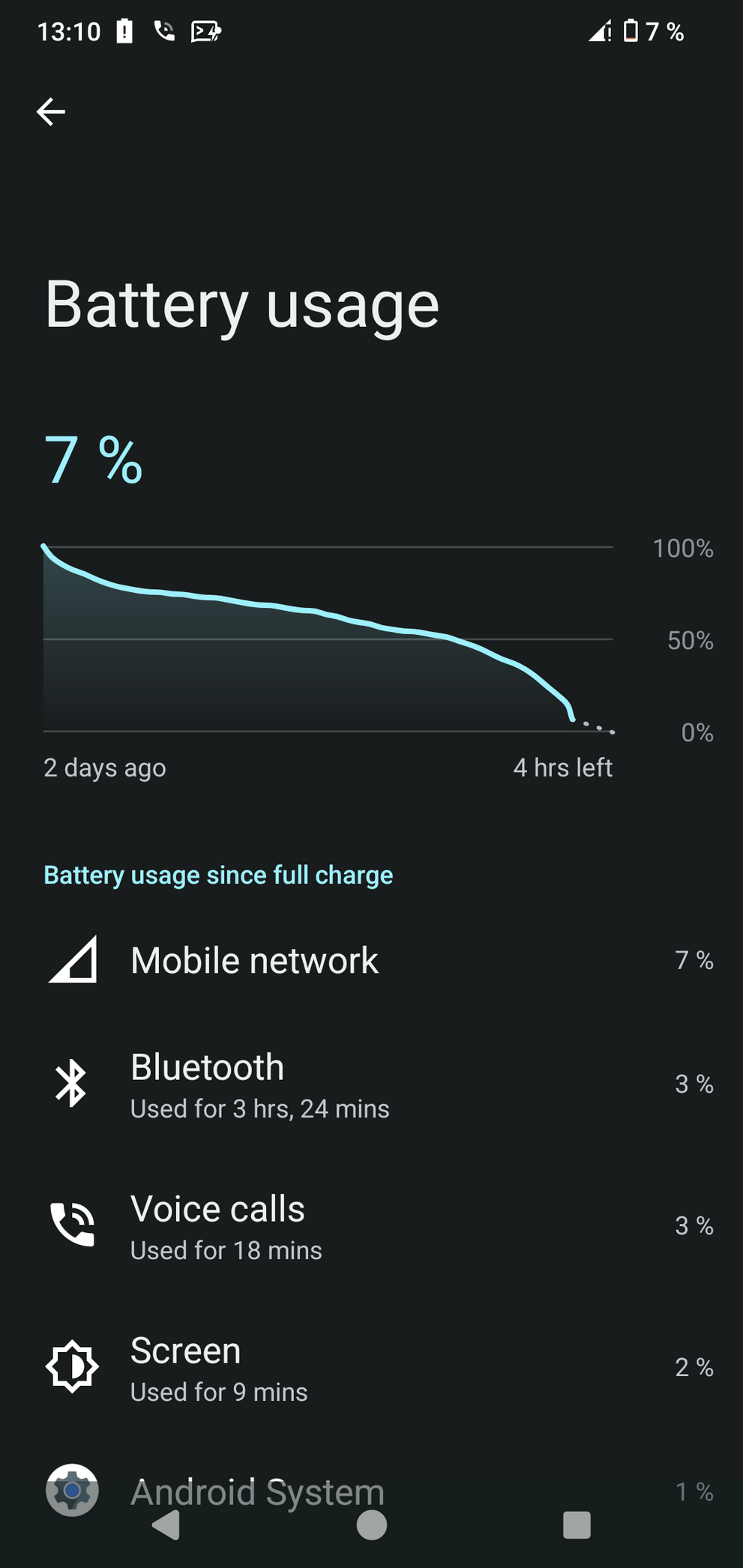

This does not look like linear battery usage. Any idea what can cause this behavior? Usage was nearly the same throughout the whole day. #Lineageos 20 on a Nokia 6.1 plus, replaced the battery just recently.
@marcidy I didn't expect them to be completely linear, but this is so far off that it can't be normal behavior. Also I haven't observed similar behavior when using other mobile phones before I owned this one.
my fault, i didn't get your expectation clearly but the info was there. I read too quickly.
You are right, that is an awful plot for a new battery, it looks like a plot for an old battery.
I expect freakazoid is right, it's stale calibration params. You should let it discharge completely and charge completely a few times and see if it gets better.
The usage pattern displayed is definitely not consistent with only 1 day.
that curve looks exactely like the discharge voltage curve of a LiIon battery. Usually phones measure the energy going out of the battery, (coulomb counter) so the curve is linear (like on my Xiaomi Mi8 with Lineage 20), but who knows what your Nokia does?
It might be that some app went crazy and caused this curve, but this really looks suspicious.

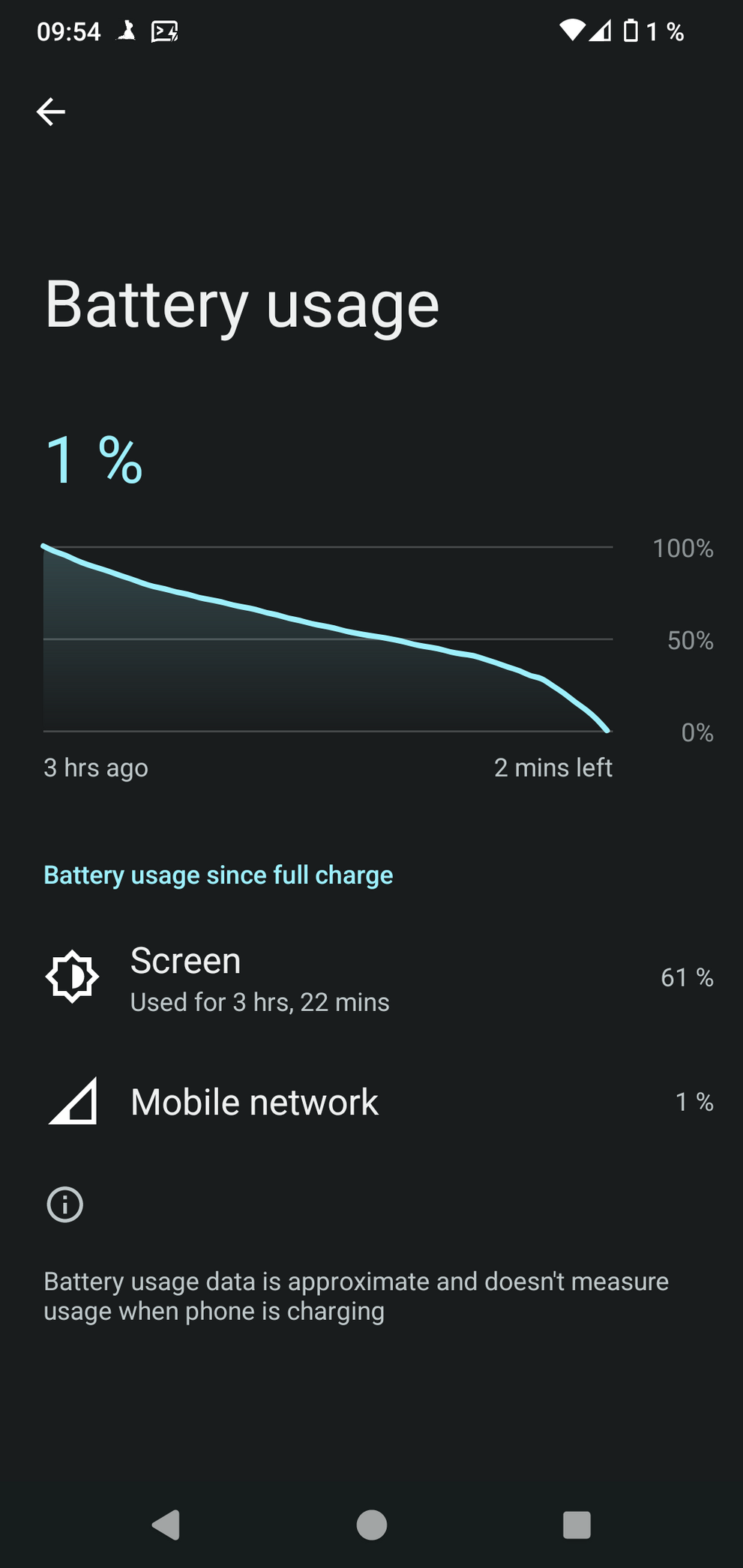

Did another round, just leaving the screen on with caffeine at full brightness, close to no interactions. Similar pattern, I'm not completely sure but it looks to me as if the fast drop in the curve starts at a lower percentage, somewhere around 30%. Will do some more tests, e.g. with mobile or wifi disabled.
so I assume you already did the 10 times charging cycle? If the battery still does not have full capacity, I am afraid you need to buy the next one ... There is so much garbage available 🙁
@debian I usually charge my phone every night, most of the time it is below 10% in the evening, I hope that counts as 10 ties charging cycle.
Right now running another test, disabled mobile data and wifi, I'm at 70% after 18 hours now, so I assume it's more an issue with either radio or some app going haywire when it has network connection available. I'm curious about the lower area with mobile data and wifi disabled.
I have an application view and system view on Android 13. Otherwise you have to fall back on the adb. e.g. adb shell dumpsys -l In Android Studio there was a Power Profiler. but I have no experience with that
Matt
•https://batteryuniversity.com/article/bu-501a-discharge-characteristics-of-li-ion
BU-501a: Discharge Characteristics of Li-ion
Battery Universitysilwol
•Matt
•You are right, that is an awful plot for a new battery, it looks like a plot for an old battery.
I expect freakazoid is right, it's stale calibration params. You should let it discharge completely and charge completely a few times and see if it gets better.
The usage pattern displayed is definitely not consistent with only 1 day.
silwol
•christian mock
•It might be that some app went crazy and caused this curve, but this really looks suspicious.
silwol
•silwol
•Thorsten Alteholz
•silwol
•Thorsten Alteholz
•silwol
•Right now running another test, disabled mobile data and wifi, I'm at 70% after 18 hours now, so I assume it's more an issue with either radio or some app going haywire when it has network connection available. I'm curious about the lower area with mobile data and wifi disabled.
Thorsten Alteholz
•silwol
•Harald K.
•silwol
•Harald K.
•Otherwise you have to fall back on the adb.
e.g. adb shell dumpsys -l
In Android Studio there was a Power Profiler. but I have no experience with that
